Galvanized Welded Mesh Gabion Mil7 Mil8 Mil10 Defense Bastion
Barrier In Competitive Price For Blast Wall Bunker Shelter
The Types of Defensive Barrier from MIl 1 to Mil 19 is made by
welded gabion box lined with geotextile cloth, it is very easy to
install, was populared in defence department and military.
Defensive barriers is a wall that has the ability to resist
explosive shock waves and can limit the destructive effect of the
explosion to a certain range. Compared with the reinforced concrete
defensive barriers, it has the advantages of light weight, easy
loading and unloading, recyclable and reusable.defensive barriers
uses the perfect combination of welded gabion wire and Geotextile,
used as a temporary to semi-permanent levee or blast wall against
explosions or small-arms.
Brief Introduction for Sand Filled Wall
Material: Galvanized steel wire or Galfan/zinc-5%aluminum wire
Service Life: 15-20 years
Wire diameter: 3.0mm- 6.0mm
Aperture:50*50mm,75*75mm, 76.2*76.2mm, 80*80mm,100*100mm etc
Color of geotextile: Grey and Military, Beige, Sand Color and so
on.
Gram Weight of geotextile: 250 g/m2 or 300 g/m2
Finish:hot dipped galvanized,Galfan wire.
Welded method:welded after galvanized or galvanized after welded

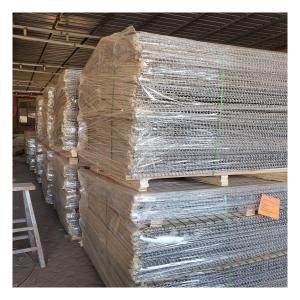

Packing:Wrapped with shrink film then packed in wood pallet or iron
pallet
The Standard Technical Specifications from SX 1 to SX 19
| Welded Sand Filled HESCO Barriers for Retaining Wall |
| Model | Height | Width | Length |
| SX-1 | 54"(1.37M) | 42"(1.06M) | 32'9"(10M) |
| SX-2 | 24"(0.61M) | 24"(0.61M) | 4'(1.22M) |
| SX-3 | 39"(1.00M) | 39"(1.00M) | 32'9"(10M) |
| SX-4 | 39"(1.00M) | 60"(1.52M) | 32'9"(10M) |
| SX-5 | 24"(0.61M) | 24"(0.61M) | 10'(3.05M) |
| SX-6 | 66"(1.68M_ | 24"(0.61M) | 10'(3.05M) |
| SX-7 | 87"(2.21M) | 84"(2.13M) | 91'(27.74M) |
| SX-8 | 54"(1.37M) | 48"(1.22M) | 32'9"(10M) |
| SX-9 | 39"(1.00M) | 30"(0.76M) | 30'(9.14M) |
| SX-10 | 87"(2.21M) | 60"(1.52M) | 100'(32.50M) |
| SX-11 | 48"(1.22M) | 12"(0.30M) | 4'(1.22M) |
| SX-12 | 84"(2.13M) | 42"(1.06M) | 108'(33M) |
| SX-19 | 108"(2.74M) | 42"(1.06M) | 10'5"(3.18M) |

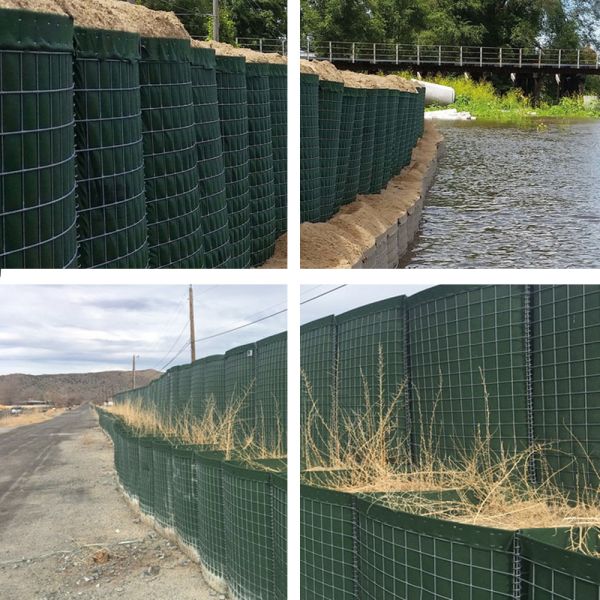

The Application for HESCO Defensive Barrier
Flood Control
1. Flood Prevention Barrier
From a simple perimeter wall to a complex base infrastructure,
SHUXIN products provide rapid expeditionary protection
2. Permanent or Semi-permanent Dike
Welded Gabion Box can as the Dike against the Flood permanently or
Semi-Permanently.
3. Flood Control Retaining Wall
Wiht sand and earth in it, Defensive Flood Barrier Wall can as a
retaining Wall to against the flood.
4. Protection Engineering of Seaside Area
Defensive Barrier is more and more homemade at the seaside area as
Protection Fence
5. Protecting Existing Structures
6. Coastal Erosion Control
The Advantages of Welded Defensive Barrier:
1. Lifetime
The unit must be made of a Wire Mesh basket which is manufactured
from Galvanised coated, welded mesh. The mesh must be made of rust
protected alloy materials.The Wire Mesh must have a guaranteed life
of not less than 5 years while exposed to environment and 10 years
when in store.
2. Collapsible
Mesh Panel is joint by spring which is a circle, Mesh Panle can
turn 360° unobstructed, so, when shiping the goods, it is
collapsible to save space.
3. Strong Protection
Thickner Mesh Panle together with thickner geotextile combined a
strong Protection wall.
