Government Military Use Army protective Welded Military sand gabion
box wall hesco barrier
Introduction :

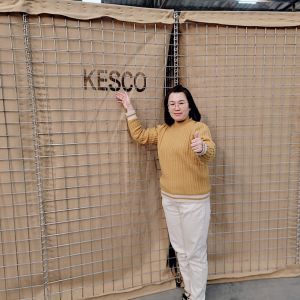

Military Sand Wall unit is a multi-cellular wall system manufactured from welded
Zinc-Aluminum coated /hot dipped galvanized steel wire mesh and
joined with vertical,helical coil joints.
The units are lined with either beige or green colored heavy-duty
non-woven polypropylene geotextile. can be filled with sand, earth,
cement,stone, then as a defence wall or bunker and widely used in
the military to protect safety.
Quick View of Military Sand Wall :
Material : Low-carbon steel wire
Wire Diameter : 4-5.0mm
Spring Diameter : 4.0-4.5mm
Mesh Size : 76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 100mm× 100mm
Panel Size : 2.21× 2.13m, 1.37× 1.06m, 0.61× 0.61m, 1.37× 1.22m
Geotextile : In heavy duty non-woven polypropylene.
Finish : Hot Dipped Galvanized after /before welding, Galfan Coated before
welding
The Military Sand Wall come in a variety of sizes. Most of the barriers can also be
stacked, and they are shipped collapsed in compact sets. Example
dimensions of typical configurations are 1.4m x 1.1m x 9.8m (4'6" x
3'6" x 32') to 2.1m x 1.5m x 30m (7' x 5' x 100').
The Common Specification of Military Sand Wall as followed:
Military Sand Wall hesco barrier Specification
| Model | Height | Width | Length | Internal Cells |
| SX-1 | 54”(1.37m) | 42”(1.06m) | 32’9”(10m) | 5+4=9 cells |
| SX-2 | 24”(0.61m) | 24”(0.61m) | 4’(1.22m) | 2 cells |
| SX-3 | 39”(1.0m) | 39”(1.0m) | 32’9”(10m) | 5+5=10 cells |
| SX-4 | 39”(1.0m) | 60”(1.52m) | 32’9”(10m) | 5+5=10 cells |
| SX-5 | 24”(0.61m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-6 | 66”(1.68m) | 24”(0.61m) | 10’(3.05m) | 5 cells |
| SX-7 | 87”(2.21m) | 84”(2.13m) | 91’(27.74m) | 5+4+4=13 cells |
| SX-8 | 54”(1.37m) | 48”(1.22m) | 32’9”(10m) | 5+4=9 cells |
| SX-9 | 39”(1.0m) | 30”(0.76m) | 30’(9.14m) | 6+6=12 cells |
| SX-10 | 87”(2.21m) | 60”(1.52m) | 100’(30.5m) | 5+5+5+5=20 cells |
| SX-11 | 48”(1.22m) | 12”(0.30m) | 4’(1.22m) | 2 cells |
| SX-12 | 84”(2.13m) | 42”(1.06m) | 108’(33m) | 5+5+5+5+5+5=30 cells |
| SX-19 | 108”(2.74m) | 42”(1.06m) | 10’5”(3.18m) | 6 cells |
Military Sand Wall Features :
Military Sand Wall can be built to any required length and to any height. The unique
joining system allows the user great flexibility in configurations
and requirements. One of the key advantages of the system is that
any readily available infill material can be utilised. Sand,
rubble, rocks, soil, concrete and even snow have been successfully
used.
Rapid construction is another key feature of the product. A typical
wall units equivalent to approximately 1500 sandbags, can be
erected and filled by two men and a single common loader in less
than twenty minutes. An equivalent wall constructed of sandbags
would take 10 men 7 hours to build.
Military Sand Wall Application:
- Perimeter security , Defensive barriers
- Equipment revetments
- Personnel bunkers, Observation points
- Guard posts, Protecting existing structures
- Contraband search areas, Highway checkpoints, Border crossing
checkpoints
- Traffic management, Hostile vehicle mitigation
